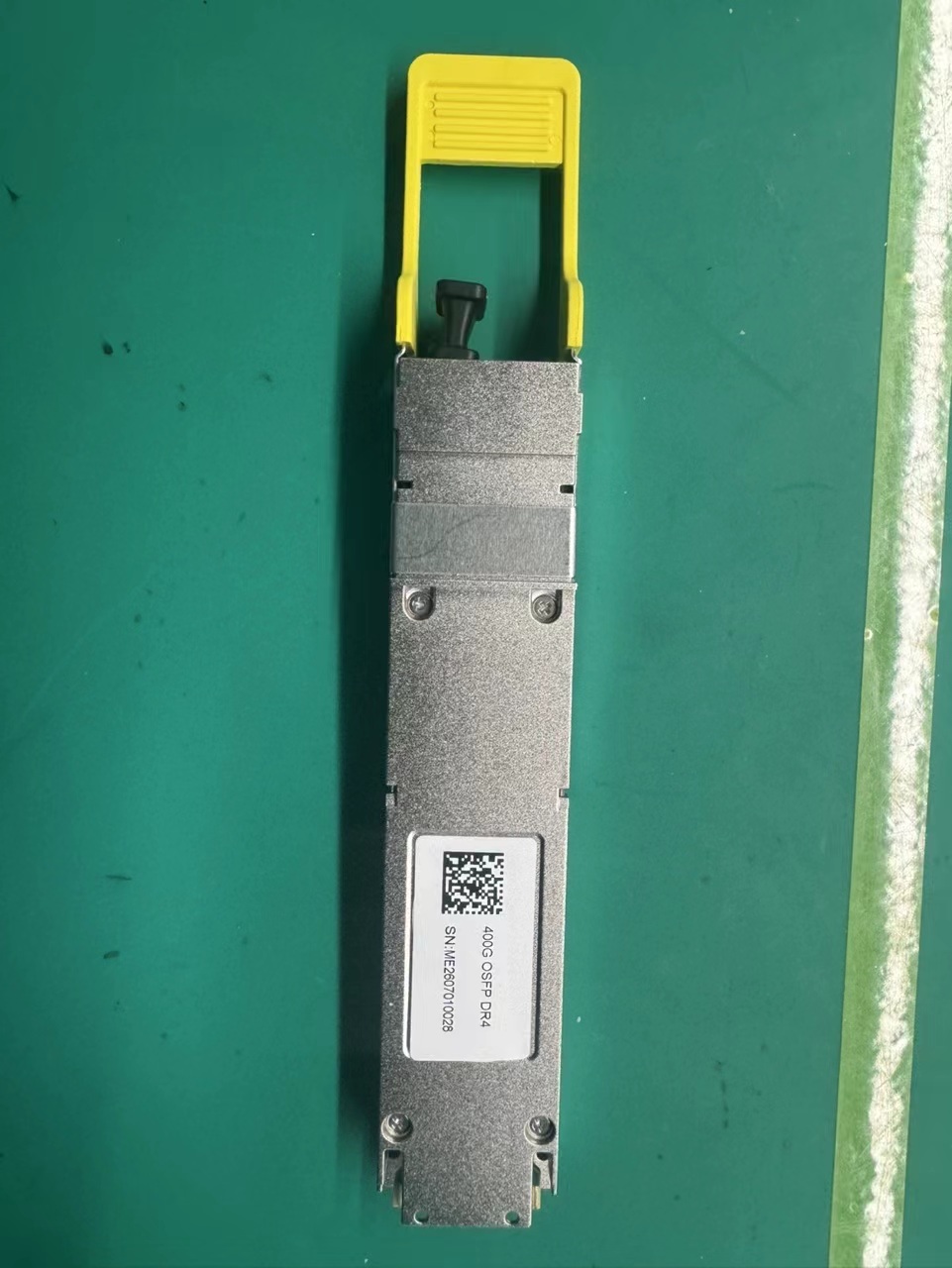

400G OSFP-RHS DR4 PAM4 1310nm 500m DOM MPO-12/APC Single-mode Optical Transceiver

This 400G OSFP‑RHS DR4 optical transceiver adopts an MPO‑12/APC interface. It supports 500 m transmission over single‑mode fiber using 4×100G PAM4 technology, complies with the 400GBASE‑DR4 standard, and is suitable for medium‑short haul high‑speed interconnections in data centers and HPC applications.

Product Features

• Power consumption: ≤10W
• Hot-pluggable, compliant with OSFP MSA and CMIS 5.2
• Hardware compatible and fully tested on real equipment to ensure superior performance, quality and reliability
• Class 1/1M laser product, RoHS compliant (lead-free)
• 30-day free return, 5 years warranty, lifetime technical support

Technical Specifications

• Form Factor: OSFP-RHS
• Transmission Distance: 500 m
• Connector Type: MPO-12/APC
• Power Consumption: ≤10 W
• Transmitter Type: SiPh
• Detector Type: PIN
• Fiber Type: Single-mode Fiber (SMF)
• Electrical Modulation: 4×100G-PAM4
• Optical Modulation: 4×100G-PAM4
• Operating Temperature: 0~70 °C (32~158 °F)
• Compliance: OSFP MSA, CMIS Rev 5.2, IEEE 802.3bs
